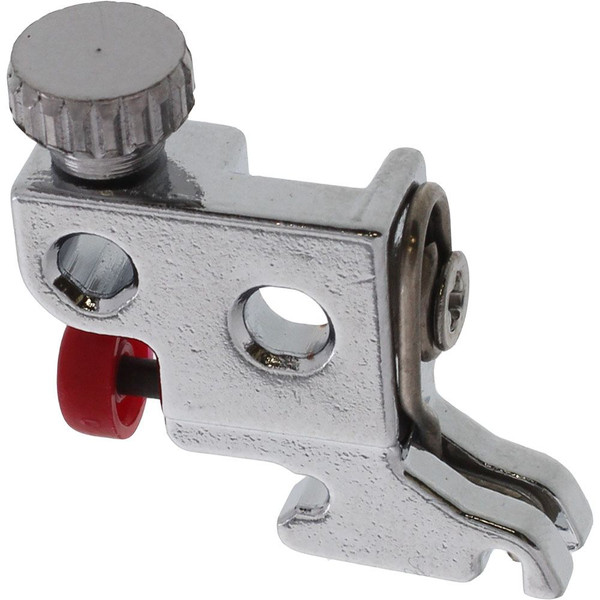

Janome Presser Foot Shank/Holder, 5mm

(No reviews yet) Write a Review
Was: $14.99
Now: $13.49
SKU:
823504004

Product Overview

Low Shank presser foot holder. Also called a Low Shank Ankle.

Most new Kenmore's and many other brands are now using this snap-on system (no longer necessary to remove the screw to change feet). LOW VERTICAL foot with shank measuring approximately 3/4" high. Fits Kenmore 385 series top-loading low shank, and some 158 series. (Can be used on super high shank using adapter #P60666). Does NOT come with a zig-zag foot. Does NOT come with a presser foot screw.

Presser Foot Shank Type: Low Shank

This accessory will fit on Janome machines in Category A-1 & A-2: Front & Top loading machines (Made for 5mm max stitch width machines - may fit 7mm max stitch width machines at your own risk - low shank)

Which Category feet does my machine take? A-1, A-2, B, C-1, C-2, D-1 or D-2?

To understand whether your machine is low shank or high shank, view the Presser Foot Guide here.

Guaranteed to fit Janome Sewing Machine Models:

100, 104, 108, 110, 128, 234, 300-372, 380, 381, 405, 415, 419s, 423s, 609, 609NH, 620, 623, 625(old), 625FA, 626, 628, 630, 631, 632, 639(Jem), 640, 641, 642, 651, 655, 656a, 656b, 657, 657a, 660, 661 (Jem Gold 2/Plus), 684, 710, 808, 1000CS, 1004, 1012A, 1014, 1018S, 1220, 1308, 1312, 1406, 1408, 1410, 1504, 1506, 1508, 1512, 1550, 1560, 1571, 1580, 1585, 1714, 1722, 1780, 1804, 1814, 1818, 1822, 1918, 2003P, 2015s, 2015a, 2023, 2032, 2039SN, 2041, 2041LX, 2041NX, 2041S, 2041SX, 2049LX, 2049NX, 2049SX, 2050, 2060, 2070, 2080, 2090, 2139, 2200XT, 2206, 2212, 2222, 2300XT, 3128, 3300, 3816, 3822, 4400, 4612 Travel Mate, CJ14, CJ24, COMBI, COMBI-10, DM21, DE25, DE1800, ENX24, ES14N, J1012, J1024, J3-18, J3-20, J3-24, NOV3000, NOV4000, RX18S, SIMPLICITY, S2600, XLII, 813, LSM100, LSM200, SMD110, SMD500, SMD1000, XR-23, PS1024, PS1030, RE1318 Dunelm DM1000, DM1118, DM1018, DM1108, DM1800, DMX200, DMX300, LX180, John Lewis JL110, JL111 Decor Excel DEX 20 & 25 JL100, JL125, JL200, J1024, JR1012, JL110, JL110SE, JL170, 216s, 217s, 219s, Hello Kitty 15822, 41012, 311PG, MyStyle 100 (512), C30, Magnolia 7318, 625e , DC2030, Sewist 721 & Janome New Home Models

May fit Elna Sewing Machine Models*: 3002, 3003, 3004, 3005, 3006, 3007, 6001, 6003, 6003QD, 6004, 6005, 620 eXperience, 660 eXperience, 7002, 7200

May fit Husqvarna Viking Sewing Machine Models*: Huskystar 219, Huskystar 224

May fit Necchi Sewing Machine Models*: 6150, FB12, QS60, TM8

May fit PFAFF Sewing Machine Models*: 944, Hobby 1122, Hobby 1132, Hobby 1142, 1469 Creative

May fit Kenmore Sewing Machine Models*158-series, 385-series

385.17526, 384.18024000, 384.18028300, 385.1584180, 385.16020, 385.16020100, 385.16120, 385.16120200, 385.16126, 385.16126200, 385.16130, 385.16130200, 385.16221300, 385.16231, 385.16231300, 385.16231301, 385.16231400, 385.16520, 385.16520000, 385.16524000, 385.16528000, 385.16530000, 385.1684180, 385.17026, 385.17026590, 385.17124, 385.17124790, 385.17126, 385.17126690, 385.17324, 385.17324990, 385.17624, 385.17624890, 385.17626, 385.17626890, 385.17628, 385.17628890, 385.17641, 385.1764180, 385.17724490, 385.17822, 385.17822490, 385.17824, 385.17824090, 385.1782480, 385.17826, 385.17826690, 385.17828, 385.17828490, 385.17922, 385.17922090, 385.17928, 385.17928090, 385.18080, 385.18080200, 385.18221800, 385.18230, 385.18230790, 385.18330, 385.18330990, 385.18630890, 385.18830, 385.18830490, 385.18836, 385.18836090, 385.18841, 385.1884180, 385.19030, 385.19030790, 385.19110, 385.19110600, 385.19150, 385.19150090, 385.19153, 385.19153690, 385.19157, 385.19157100, 385.19233400, 385.19365, 385.19365990, 385.19501, 385.1950180, 385.1950280, 385.19601, 385.1960180, 385.19606400

*Not Guaranteed. You can call us to confirm for your machine.

Part # 823504004
Alternate Part Numbers 11191, 56475, 804509000, 823509000, 395714-17
Product Dimensions
Product Weight 0.007 kg
Package Dimensions  7.90 x 13.20 x 0.30 cm (WxHxD)
Package Weight 0.015 kg
Shipping Weight ~0.100 kg
