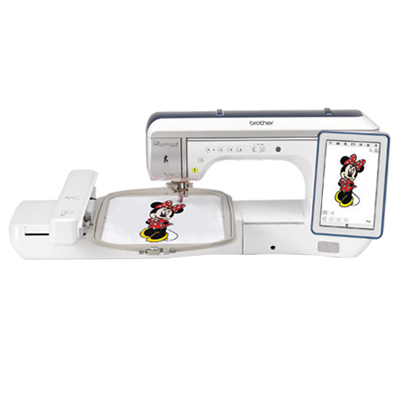

Brother Luminaire 2 Innov-ìs XP2 Sewing, Quilting & Embroidery Machine

(No reviews yet) Write a Review
MSRP: $22,999.00
$16,599.00
(You save $6,400.00 )
SKU:
Brother-XP2
Availability:
Usually ships within 2 business days.
Workspace Area:
5" x 13.1"

Product Overview

The XP2 delivers the same advanced features of the original Luminaire, like StitchVision Technology for stitch precision and more accurate embroidery design placement, 4 included frames, a built-in camera for fast scanning and a large 10.1 capacitive touchscreen display for easy menu navigation, zooming, on-screen design editing and tutorial viewing. The Luminaire 2 takes its offering further with a variety of sashing patterns and the auto decorative fill function as well as more stitches, motifs and fill patterns than its predecessor so you can tap into endless design options. It also lets you step up your embroidery and quilting game with brilliant new innovations and app-based features available from your mobile devices. Discover Brother s XP2 for a sewing experience that'll take you light years beyond.

To learn more about the 'Brother Luminaire 2 Innov-ìs XP2 Sewing, Quilting & Embroidery Machine', download the brochure here.
Visit product site: http://www.LuminaireXP2.com



Main Features

  • StitchVision projects stitches and designs on the fabric
  • End point sewing function stops stitching where you want
  • Brother-exclusive Quiltbroidery features
  • 65-square-inch workspace and generous 13" needle-to-arm span
  • 4 clamp-free, spring release frames up to 10 5/8" x 16"
  • Expandable library of built-in tutorials and manuals
  • Over 1,300 built-in designs including 192 Disney designs
  • Track your progress with the My Stitch Monitor Mobile App
  • Transfer images wirelessly with the My Design Snap Mobile App
  • InnovEye Plus Technology for fast, high-resolution scanning

Sewing Features

Projected Gridline Marker Yes
Projected Guideline Marker Included Single or Double
Projected Angled Line Marker Yes
Stitch Width 7mm
Back to Beginning Key Yes
Free Arm Yes
Built-in Sewing Lettering Fonts 4
Start/Stop Button Yes
Presser Foot Levelling Yes
Built-in Stitches (includes Buttonhole Styles) 821
Needle Position Key (Up/Down) Yes
Bed Area (depth x width) inches 8" x 18.8"
Stitch Length 5mm
Max. Sewing Speed (stitches per minute) 1,050
Buttonhole Styles 15 one-step and 1 four-step
Automatic Presser Foot Lifter Yes
Side Feeding Yes
Presser Foot Pressure Adjustment Yes
Feed Dog 7 (longer version)
Speed Controller Yes
Needle Stop Position Yes
Reinforcement/Reverse Stitches Yes
Workspace Table Available for additional purchase
Twin Needle Setting Key Yes

Embroidery Features

Projected LED Embroidery Pointer Yes
Colour Sort Yes
Space Reduction in Embroidery Alphabets Yes
Curving Text on Screen Editing Yes
Pattern Rotating 0.1 Degrees, 1, 10 or 90 Degrees
My Custom Design™ Feature Yes
Built-in Disney/Pixar® Character Designs 192
Thread Wiper Yes
Max. Embroidery Speed (stitches per minute) 1,050
InnovEye™ Technology Yes
Light and Audio Cues to Alert Finished Designs Yes
Snowman® Embroidery Positioning Marker Yes
Light and Audio Cues with On/Off modes Yes
Built-in Frame Designs 10 Shapes x 14 Stitch Patterns
Max. Embroidery Area (X x Y) 10 5/8"x16"
Light and Audio Cues to Alert Thread Breakage Yes
Drag & Drop Editing Yes
Light and Audio Cues to Alert Thread Change Yes
Colour Shuffling™ Function Yes
On-Screen Automatic Density Adjustment (STB) Yes
Sewing Decorative Stitches w/Embroidery Arm Yes
Realistic Preview Yes
Automatic Feed Thread Cutting Yes
Compatible with Brother Embroidery Software Yes, included
Resume Function Yes
Trial Position/Layout Function Yes
Included Embroidery Hoops 5" x 7" Frame, Scanimation™ Scanning Frame, 4" x 4" Frame, 10 5/8" x 16" Frame, 10 5/8” x 10 5/8” Frame
Appliqué Creator Function Yes
Built-in Embroidery Lettering Fonts 24
Status Monitoring on Computer Screen Yes
Built-in Embroidery Designs (non-license) 1,322

Quilting Features

Automatic Height Adjuster™ AHA® Feature Yes
Drop Feed/Free Motion Yes, automatic
Built-in Quilting Stitches Yes
MuVit™ Digital Dual Feed Included
Knee Lifter Included
Free Motion Quilting Foot Included
Included Quilting Feet Free-motion Echo Quilting Foot, Free-motion Open toe Echo Quilting Foot, 1/4" quilting foot, Free-motion quilting Foot
Pivot Function Yes

Carton Contents

Specialty Feet Included Yes
Quick Reference Stitch Guides Yes
Other Included Accessories 4 Embroidery Frame Sets, Accessory Bag, Additional Accessories Included in Box, Ballpoint Needle, Bobbins, Dual King Spool Thread Stand, Dual Purpose Stylus, Cleaning Brush, Cord Guide Bobbin Cover, Embroidery Arm, Embroidery Bobbin Thread, Embroidery Needle Plate Cover, Embroidery Positioning Sticker Sheets, Eyelet Punch, Grid Sheet Set, Knee Lifter, Large Accessory Case, Scissors, Scanimation™ Scanning Frame, Screwdriver, Seam Ripper, Snowman® Embroidery Positioning Marker Sheets, Spool Caps, Spool Nets, Stabilizer Material, Straight Stitch Needle Plate, Stylus, Twin Needle
Accessory Storage Yes
Standard Presser Feet Included with Machine 14
Included Accessory Feet 1/4" quilting foot, Blind stitch foot, Button sewing foot, Camera detecting buttonhole foot , Couching dual feed foot, Embroidery couching foot, Dual feed foot, Embroidery foot, Free-motion open toe quilting foot, Free-motion quilting foot, Monogramming foot, Overcasting stitch foot, Straight stitch foot, Zigzag foot, Zipper foot
Wide Table Available for additional purchase
Foot Controller Included

Other

Warranty 25-Year Limited Warranty

Basic Features

Projector Yes
Adjustable Screen Brightness Settings Yes
Media Type(s) USB
Recognition Type Grayscale / Colour recognition
Easy Bobbin Winding Automatic bobbin winding system
Lighting LED 13" Lighting
LCD Size (inches) 10.1`` Capacitive (5.3"x8.5")
Adjustable Bobbin Winding Speed Yes
Opening Screen Yes
Needle Threading System Yes
Quick Set™ Bobbin Yes
Computer Connectivity with Update Capability Yes
Adjustment for Thread Tightness Yes
Zoom Function Yes
Built-in Memory Yes
Software Upgrades Yes
On-Screen Editing Yes
Stitch Select Touch panel and touch sensor
Thread Sensor On/Off Yes
Thread Sensor Upper and bobbin
Electronic Speed Control Yes
Automatic Thread Cutter Yes

Luxury Combination Comparison Chart


  Stellaire Innov-ís
XJ1
THE Dream Machine 2 Innov-ís XV8550D Luminaire Innov-ís XP1 Luminaire Innov-ís XP2

General


Needle to Arm 11.25" 11.25" 13.1" 13.1"
LCD SIze (Horizontal x Vertical) Inches 10.1" (5.3"x8.5") 10.1" (5.3"x8.5") 10.1" Capacitive (5.3"x8.5") 10.1" Capacitive (5.3"x8.5")
Lighting 10" LED 10" LED 13" Full Spectrum 13" Full Spectrum
Easy Bobbin Winding One level One level 5 level adjustments 5 level adjustments
2-Spool Thread Stand Removable (must remove cover) Removable (must remove cover) Foldable (magnetic); attaches to cover Foldable (magnetic); attaches to cover
Stylus One Style One Style Dual Purpose Dual Purpose
Needle Plate 2 screws to remove 2 screws to remove Quick-action release Quick-action release
Bed of Machine Smooth, glossy surface Smooth, glossy surface Textured non-glare Textured non-glare
Automatic Thread Cutter
Manual Printed Manual (non-updateable) Printed Manual (non-updateable) On-screen viewing (updateable) On-screen viewing (updateable)
Needle Threading System Automatic Automatic Automatic Automatic
Accessory Box 2 trays for feet 2 trays for feet 3 trays for feet, room for MuVit foot and buttonhole foot 3 trays for feet, room for MuVit foot and buttonhole foot
WLAN Enabled; works with My Design Snap mobile app, PE-DESIGN N/A (available through BES4) Enabled; auto-updated when connected; works with PE-DESIGN Enabled; auto-updated when connected; works with My Design Snap mobile app, PE-DESIGN
My Design Snap Mobile App N/A N/A Image transfer only
My Stitch Monitor Mobile App N/A N/A ✓ with upgrade
Auto Firmware Update N/A N/A

Embroidery


Maximum Embroidery Area (X x Y) 9 1/2" x 14" 9 1/2" x 14" 10 5/8" x 16" 10 5/8" x 16"
Standard Included Frames 4 (9.5" x 14", 9.5" x 9.5", 5" x 7", 4" x 4") 5 (9.5" x 14", 8" x 12", 9.5" x 9.5", 5" x 7", 4" x 4") 4 (10 5/8" x 16", 9.5" x 9.5", 5" x 7", 4" x 4") 4 (10 5/8" x 16", 10 5/8" x 10 5/8", 5" x 7", 4" x 4")
Total Built-in Embroidery Designs 727 982 1,157 (75 additional with upgrade) 1,322
Built-in Disney Designs 101 166 192 192
Built-in Frame Designs 140 (10 shapes x 14 stitch patterns) 140 (10 shapes x 14 stitch patterns) 140 (10 shapes x 14 stitch patterns) 140 (10 shapes x 14 stitch patterns)
Built-in Embroidery Lettering Fonts 24 22 24 24
Background Scanning My Design Snap mobile app, mobile device, and specialty hoops Built-in camera Built-in camera - scanning 4x faster than XV8550D Built-in camera - scanning 4x faster than XV8550D
Embroidery Positioning Snowman Embroidery Positioning Maker, My Design Snap mobile app, mobile device, and specialty hoops Background scan, Snowman Embroidery Positioning Marker Background scan, Snowman Embroidery Positioning Marker Background scan, Snowman Embroidery Positioning Marker
Auto Stippling Inner fill available (doughnut shape)
Echo Stitching N/A N/A Inner fill available (doughnut shape)
Auto Decorative Fill Function N/A N/A N/A Inner fill available (doughnut shape)
Thumbnail Size Two sizes (available in settings) Two sizes (available in settings) Stretch and pinch on screen Stretch and pinch on screen
Decorative Sashing N/A N/A Auto and enhanced; 10 decorative motifs before upgrade and 15 after upgrade Auto and enhanced; 30 decorative motifs which include 20 regular sashing patterns, 5 (two color) sashing patterns and 5 hexagon sashing patterns
Couching N/A N/A 40 built-in embroidery patterns (after upgrade) 40 built-in embroidery patterns
My Design Center Accessible from embroidery menu; 10 decorative fill patterns Accessible from embroidery menu; 10 decorative fill patterns Accessible from embroidery menu; 30 decorative fill patterns (plus 6 with upgrade) Accessible from embroidery menu; 42 decorative fill patterns, enhanced embroidery editing including 18 options of random shift and up to 400% magnification (zoom)
Changing Bobbin While Embroidering N/A N/A Tie off bobbin thread before removing hoop Tie off bobbin thread before removing hoop

Sewing & Quilting


Built-in Sewing Stitches 727 726 821 (3 additional with upgrade) 824
Disney Decorative Stitches N/A N/A 10 10
Maximum Sewing Speed (Stitches per Minute) 1,050 spm 1,050 spm 1,050 spm 1,050 spm
Stitch Choice Viewable on the LCD Viewable on the LCD Projected onto the machine bed/on fabric Projected onto the machine bed/on fabric
Laser Guide Viewable on the LCD display and fabric Viewable on the LCD display and fabric N/A N/A
Projector Guide N/A N/A Viewable on the LCD display and fabric Viewable on the LCD display and fabric
Guide Line Marker Line Line Line, angle, grid and dual; three colors available Line, angle, grid and dual; three colors available
End Point Sewing Function N/A Available with Sensor Pen N/A
My Custom Stitch Feature
MuVit Foot Included Included Included Included
Buttonhole Lever-type buttonhole foot Lever-type buttonhole foot Camera-detected buttonhole foot with stabilizer plate included Camera-detected buttonhole foot with stabilizer plate included
Combining Stitches Edit or add anywhere in combo Edit or add anywhere in combo Edit or add anywhere in combo; link length maintains aspect ratio; select all - adjust entire combo Edit or add anywhere in combo; link length maintains aspect ratio; select all - adjust entire combo

Specifications subject to change. Some features may be available on XP1 by purchasing XP1UGK1 and XP1UGK2.

*In some cases, there may be some difference between the projector view and the actual embroidery stitch-out, based on materials used.
