Janome Pintuck Cord Guide Set

Pintucking can easily add the flare and dimension you are looking for in your sewing. The Janome Pintucking guides are specially designed to slot in place of the bobbin cover plate and feed cord or hat elastic easily. Used in conjunction with the Pintuck foot and twin needles, create multiple rows of parallel pintucks with a degree of precision that was previously unattainable. By replacing the snap-on bobbin cover with Pintuck Cord Guides a corded pintuck can be made quickly. The plates contain a special guide that makes it easier to guide the string/cord while it is sewn in.

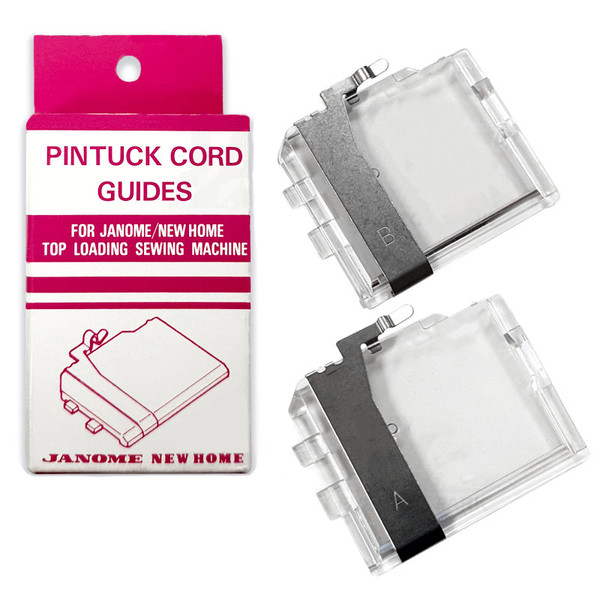

The set includes two plates:

• Plate A is used for cords up to 1.5 mm thick.
• The B plate is used for a cord thickness from 1.5 mm to 2.5 mm.

The plates work perfectly with the dedicated foot for sewing in cord and thin insets from Janome. Feet for sewing in cord and thin insets from Janome can be found on our website (search "pintuck").

Assembly and fitting

• The assembly of the plate is very simple, you just need to put it on instead of the plate protecting the bobbin.
• *This item will not work with newer models with Easy Set Bobbin needle plates.*
• Suitable for models with a square-shaped plastic hook cover as shown below

This accessory will fit on Janome Top loading machines with hook cover shown below (part numbers: 750036012, 750036001, etc.)

Which Category feet does my machine take? A-1, A-2, B, C-1, C-2, D-1 or D-2?

To understand whether your machine is low shank or high shank, view the Presser Foot Guide here.

Guaranteed to fit Janome Sewing Machine Models:

MW3018LE, 18W LE, 2206, 2212, 2222, 2040, 3022, 3023ML, 3128, 4018, 4018ME, 4023, 4123, 4618, 4618LE, 4623, 4623LE, 4800QC, 5018, 5024, 509, 5124, 5200QDC, 521, 525S, 6021, 625E Sewist, 659, 660 Jem Gold, 661 (Jem Gold II), 662 Jem Silver, 665 (Jem Gold III), 706NX, 7061NX, 7318 Magnolia, 7325 Magnolia, 7330 Magnolia, 7360 Magnolia, 8048 Harmony, 8100, AQS2009, DC2007LE, DC2010, DC2011, DC2012, DC2013, DC2014, DC2019, DC3018, DC3050, DC4030, DC4030P, DC4030PR, DC4100, DC5100, DE5018, DE5024, DE5124, DS3500, HD3000, HD3000BE, HF3000, HF4048, HF5024, HF8048, HF8077, HT2008, HT2008LE, Jem Gold Plus, JP720 Jem Platinum, JP760 Jem Platinum, JW7630, MC10000, MC10001, MC200E, MC2400, MC3000, MC300E, MC3500, MC4000, MC4018, MC4023, MC4400, MC4800, MC4800QC, MC4900, MC5000, MC5200, MC5700, MC8100, MC9000, MC9500, MC9500P, MC9700, ME4014, ML3023, MO200, MS5027PR, MyExcel 23L, NH2014, NH2014LE, NH40, NPCF-50, Schoolmate S-3015, Schoolmate S7330, Sewist 500, Sewist 509, Sewist 721, Sew Precise, SM5030C, TB30

Will work with hook cover plate part numbers: 750036012, 395719-98, 395725-79, 395762-83, 4160360-01, 4162586-01, 654060003, 750036001, 750036102, 825018035, 830302002

To fit models that use the bobbin cover plate as pictured:
